Coming from wllvm or gllvm?
rllvm keeps the CC/CXX → build → extract workflow of
wllvm and
gllvm: rllvm-cc and rllvm-cxx stand in
for wllvm/gclang, rllvm-get-bc for extract-bc/get-bc.
| 🌟 rllvm | wllvm / gllvm | |
|---|---|---|
| 🦀 Languages | C, C++, Objective-C, Rust | C, C++, Fortran |
| 🔍 Analysis | Source-level queries, MCP server | ❌ |
| 🤖 Agents | Claude Code plugin | ❌ |
| 📋 No wrapper build | Import compile_commands.json |
❌ |
| 🎯 Targets | Native, cross, WebAssembly, eBPF | Native; cross with a target objcopy |
| 🔗 LTO | Three modes, dispatched on object content | -flto unlikely to survive extraction |
| ♻️ Rebuilds | Cache validated against inputs | No bitcode cache |
| 📦 Moving a build tree | Paths relative to a root | Absolute bitcode paths |
| ⚙️ Setup | Detected from llvm-config |
Environment variables |

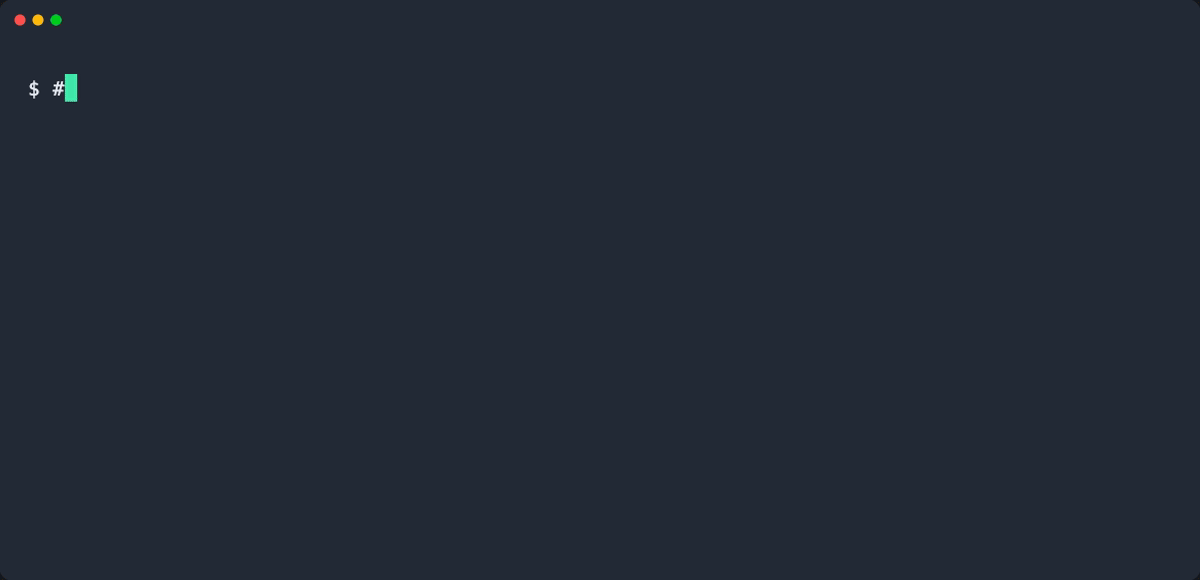

Quick start
brew install h1994st/tap/rllvm llvm # macOS or Linux with Homebrew
# Or: cargo install rllvm
# LLVM on Ubuntu/Debian: sudo apt install llvm llvm-dev clang libclang-dev
rllvm-cc hello.c -o hello
rllvm-get-bc hello # writes hello.bc
rllvm-info hello.bc # target, function, block, instruction counts
On first run, tool paths are detected from llvm-config and written to
~/.rllvm/config.toml.
How it works
The wrappers run the real compiler and also emit bitcode. Each object gets a section recording its bitcode path; the linker concatenates those sections, so the binary lists every module that went into it. Extraction reads the paths back and merges the modules.
Capture covers only what you build through the wrappers. A prebuilt native library contributes no bitcode, so build every dependency you need in the whole-program view.

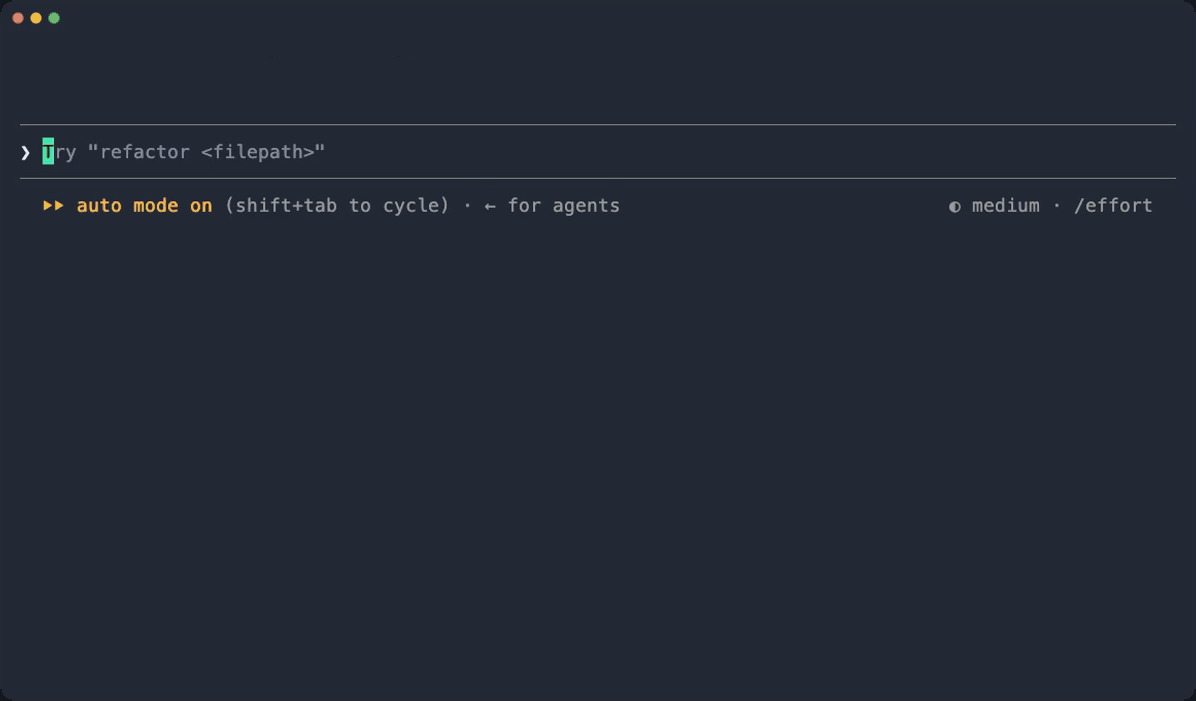

Claude Code plugin
/plugin marketplace add h1994st/rllvm
/plugin install rllvm@rllvm
| Part | What it does |
|---|---|
setup skill |
Installs rllvm and rllvm-query with your approval, picks a compatible LLVM, configures, and troubleshoots |
capture skill |
Chooses how to capture your build and what to extract |
query skill |
Picks the query that answers your question and reports what the answer does not cover |
complete-callgraph skill |
Resolves unresolved indirect calls into a labeled overlay, never reported as proven |
/overlay-view |
A read-only pane of the overlay’s candidates and edges |
| MCP server | rllvm-query mcp, configured automatically |
Builds run as ordinary shell commands you approve, never inside the server. See the plugin example.
Capturing bitcode
CC=rllvm-cc CXX=rllvm-cxx ./configure && make # Autotools, Make
CC=rllvm-cc CXX=rllvm-cxx cmake -S . -B build && cmake --build build
RUSTC_WRAPPER=rllvm-rustc cargo build # Rust and its C/C++
rllvm-compdb generate build/ --output-dir analysis/all # compile_commands.json
rllvm-cc wraps clang and rllvm-cxx wraps clang++, Objective-C included.
rllvm-compdb compiles an existing compilation database without rebuilding,
so its modules describe the source tree rather than a real link.
| Build | Notes | Example |
|---|---|---|
| CMake, Objective-C | Toolchain file cmake/rllvm-toolchain.cmake sets all four compilers |
cmake, objc |
| Rust | Per-crate capture; your LLVM must read what rustc -vV emits |
rust, ffi |
| LLD | -fuse-ld=lld |
lld |
| LTO | RLLVM_LTO_MODE: marker (default), save-temps or skip |
lto |
| Cross | --target=<triple> reaches the compile and the link |
cross-compile |
| WebAssembly, eBPF | --target=wasm32-unknown-unknown, --target=bpf -g |
wasm, ebpf |
| Compilation database | Direct clang/clang++ entries; select with --source or --entry |
compdb |
Every compiler flag reaches the real compiler. Wrapper options are long-only and
prefixed --rllvm-, such as --rllvm-verbose=3 to log subcommands; see the
wrapper options example. RLLVM_CACHE=1 skips the
extra bitcode compilation on a rebuild once the preprocessed inputs,
dependencies, compiler, command, directory and environment match; keep it off
when inputs preprocessing cannot see, such as profiles, change. Universal (multiple
-arch) builds are unsupported.
Extracting bitcode
rllvm-get-bc app # one whole-program app.bc
rllvm-get-bc -b libfoo.a # a bitcode archive, libfoo.bca
rllvm-info app --json > catalog.json # which modules, and where they came from
rllvm-get-bc app --module MODULE_ID --output-dir analysis/selected
rllvm-get-bc accepts executables, objects and archives. A catalog records the
modules found and their provenance; queries read it, and --module, --source
and --configuration select from it. To move a build tree, build with
RLLVM_BITCODE_ROOT and extract with --bitcode-root.
See the merge strategies, catalogs and relocatable examples, and the catalog format.
Analyzing bitcode
rllvm-query links LLVM statically, so it ships separately:
brew install h1994st/tap/rllvm-query # brings its own llvm
# Or: cargo install rllvm-query
# If llvm-config is not on PATH: LLVM_SYS_231_PREFIX="$(brew --prefix llvm)"
On Ubuntu/Debian, install libpolly-N-dev alongside llvm-N-dev and
libclang-N-dev.
rllvm-query --catalog catalog.json defs parse_frame # where it is defined
rllvm-query --catalog catalog.json at parser.c 4 # what is at a source line
rllvm-query --catalog catalog.json callers parse_frame # who calls it
rllvm-query --catalog catalog.json callees main # what it calls
rllvm-query --catalog catalog.json uses parse_frame # where its address is taken
rllvm-query --catalog catalog.json reach main parse_frame # a path between two functions
rllvm-query --catalog catalog.json slice main parse_frame # every function on such a path
rllvm-query --catalog catalog.json closure parse_frame in # everything that reaches it
rllvm-query --catalog catalog.json externals # unbound symbols
rllvm-query --catalog catalog.json ffi-exports # Rust functions C can call
rllvm-query --catalog catalog.json indirect-targets parser.c:8 # targets of an indirect call
rllvm-query --catalog catalog.json resolution-candidates # unresolved indirect calls
rllvm-query --catalog catalog.json guards --at clamp.c:14 --operand 2 # what bounds a value
Every answer also says what it could not see: modules that failed to parse,
indirect call sites, ambiguous bindings, and source that changed since it was
compiled. Add --json for the machine-readable envelope or --full for those
blocks as text. Name a symbol by its mangled name, its demangled reading, or a
bare identifier that searches. A file:line names its file as the debug info
recorded it, or by any path to the same file, symlinks included. Pipe several
queries in, one per line, to load the catalog once. Extracted facts are cached;
RLLVM_QUERY_CACHE=0 turns that off, and rllvm-query cache clear empties it.
See the queries, name resolution and staleness examples.

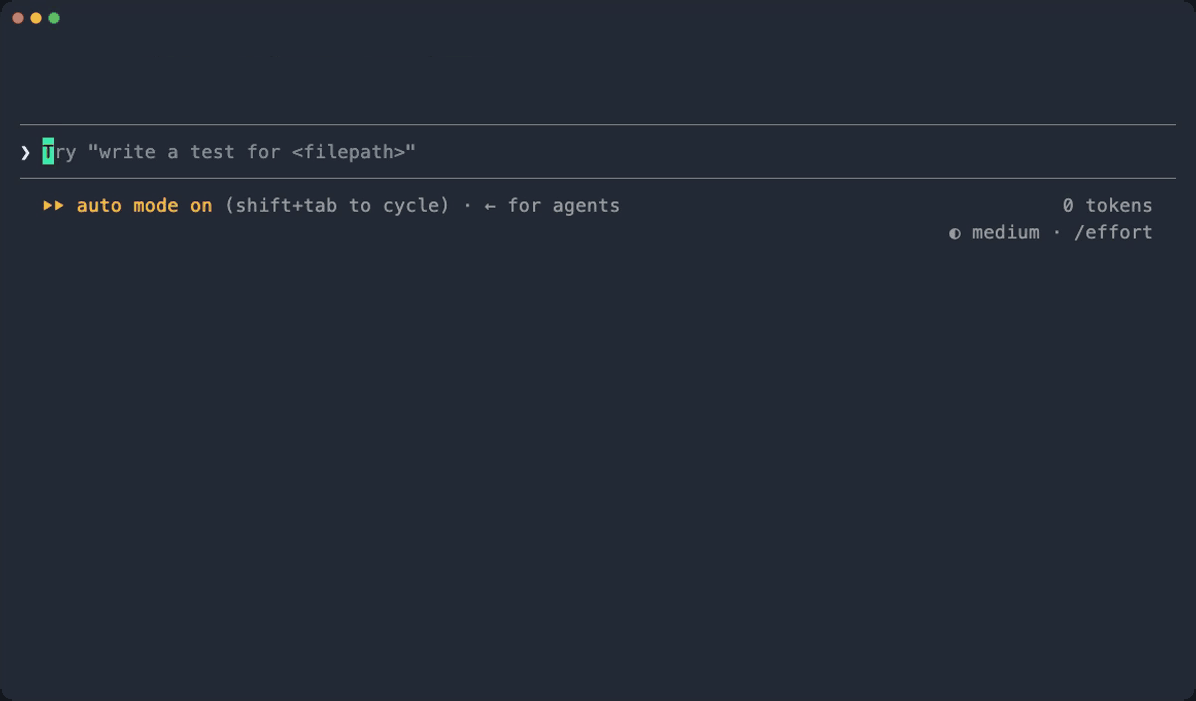

Completing the call graph
An agent that resolves an indirect call records it with rllvm-query overlay
record in an overlay file beside the catalog (or --overlay PATH); the catalog
itself never changes. Overlay edges are hypotheses: reach, closure and
slice walk them only with --include-overlay (and --min-confidence), label
each step agent, and never call such a path proven. slice --emit-module
OUT.bc writes a slice as one small module for checking an edge. An overlay can
also hold annotate verdicts on whether a value is feasible, which reach and
slice surface with --annotations. See the
call-graph overlay example.
Value guards
guards lists the comparisons, clamps, masks and moduli that constrain a
call’s argument (--at FILE:LINE --operand N), its result (--return) or a
-g local (--function F --local NAME), with each guard’s bound and source
line; --from F keeps only callers on a path from F.
It is evidence, never a verdict: an empty list does not mean unbounded. See the
value guards example.
MCP server
rllvm-query mcp serves the same queries as tools over stdio:
{ "mcpServers": { "rllvm": { "command": "rllvm-query", "args": ["mcp"] } } }
A client loads a catalog with load_catalog or a binary with inventory, and
keeps several loaded at once. See the MCP example; the
Claude Code plugin configures this for you.
Configuration
The TOML file lives at $RLLVM_CONFIG or ~/.rllvm/config.toml.
rllvm-init --dry-run previews detection; --llvm-prefix chooses a toolchain
and -o selects the file to write.
Configuration keys
| Key | Required | Description |
|---|---|---|
llvm_config_filepath |
Yes | Absolute path to llvm-config |
clang_filepath |
Yes | Absolute path to clang |
clangxx_filepath |
Yes | Absolute path to clang++ |
llvm_ar_filepath |
Yes | Absolute path to llvm-ar |
llvm_link_filepath |
Yes | Absolute path to llvm-link |
llvm_objcopy_filepath |
No | Absolute path to llvm-objcopy; preferred for embedding, with an internal fallback |
llvm_bindir |
No | Directory of the LLVM tools without a key of their own (llvm-nm, llvm-dis, llvm-extract, opt; default: llvm-config --bindir) |
rustc_filepath |
No | Compiler for direct Rust invocation; RLLVM_REAL_RUSTC overrides; defaults to rustc on PATH |
bitcode_store_path |
No | Directory for bitcode files (must be absolute; created if missing) |
bitcode_root |
No | Record embedded paths relative to this root (default: absolute) |
llvm_link_flags |
No | Extra flags for llvm-link |
lto_ldflags |
No | Extra flags for link-time optimization |
bitcode_generation_flags |
No | Extra flags for bitcode generation (e.g. -flto) |
lto_mode |
No | How -flto builds record bitcode: marker (default), save-temps, skip; RLLVM_LTO_MODE overrides |
is_configure_only |
No | Skip extra C/C++ bitcode work (default: false) |
cache_enabled |
No | Reuse C/C++ bitcode across rebuilds; overridden by RLLVM_CACHE (default: false) |
cache_dir |
No | Cache directory; also holds rllvm-query’s query-facts/ (default: ~/.rllvm/cache) |
query_cache |
No | Reuse rllvm-query’s extracted per-module facts; overridden by RLLVM_QUERY_CACHE (default: true) |
query_cache_warn_mb |
No | Facts cache size, in MB, past which rllvm-query warns (default: 1024) |
log_level |
No | 0=error (default), 1=warn, 2=info, 3=debug, 4+=trace; RLLVM_LOG_LEVEL overrides |
Benchmarks
Clean build-only time relative to native compilation, on an Apple M4 with LLVM 23.1.2:
| Workload | Cache disabled | Primed C/C++ cache |
|---|---|---|
| nghttp2 C (CMake) | 1.86× | 1.65× |
| nghttp2 C++ (CMake) | 1.88× | 1.28× |
| Quiche (Cargo) | 1.28× | 1.23× |
C/C++ capture adds a bitcode compilation per source; Rust emits bitcode in the same rustc invocation.
See the baseline for conditions and the benchmark guide for reproduction.
Related projects
wllvm and gllvm built the wrapper-and-extract approach this tool follows.
rules_rllvm is a separate Bazel-native project and does not use these binaries.
